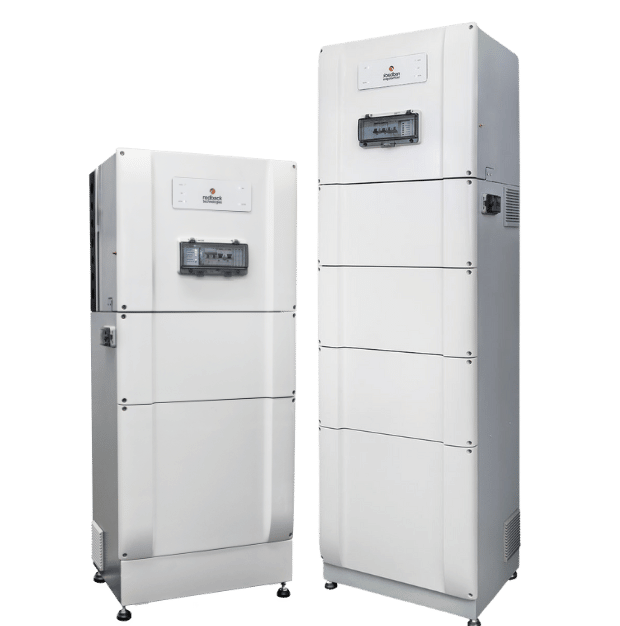

RedBack Smart Battery

Upgrade your existing solar system the smart way

Backup Supply during a
Power Outage

7.2kWh, 9.6kWh or 14.2kWh
Battery Storage Capacity

Australian Designed for Australian Conidtions

The Smart Solution

Smart Battery System

Redback’s Smart Battery System is the perfect upgrade to your existing solar system. Adding a battery to complement your rooftop solar enables you to maximise your home’s self-sufficiency by utilising more of your own, self-generated energy, and keeping the lights on if the grid goes down.

And with three system sizes to choose from, you can tailor your Smart Battery to your household energy usage.


Tomorrow's Power. Today.

Smart Cycle

We consume most of our power in the morning and in the evening, yet solar panels generate most of their energy in the middle of the day when the sun is shining. Adding a battery to compliment your rooftop solar will allow you to store your excess energy generated during the day, to power your home when the sun goes down. This in turn reduces the need to buy electricity in peak periods, saving you even more on your power bills.

A home battery system can also provide you and your family protection in a power outage by enabling you to power essential appliances in your home with your stored battery power in the case of a blackout.


Determine your level
of Self-Sufficiency

Monitor your Home
in Real-Time

Discover how much energy you're Buying or Selling


MyRedBack App

The MyRedback app puts the control in your hands. You can monitor the amount of electricity your solar panels are producing, the amount being exported back to the grid, and your household energy consumption.

Monitor your energy use with ease with the Redback Portal web application. The Redback Portal provides an intuitive dashboard that incorporates analytical solar and storage data dating back two years.*

*For data to be collected, the system must be online.


Australian Designed

For Australians Everywhere

RedBack's solar and battery solutions are designed in Australia and tested to endure the harshest Australian weather conditions, so you can feel confident installing your system in an outdoor location or garage.

With options to suit every home, you can feel secure knowing that Redback’s products are built to last, with a 10-year warranty and local Brisbane-based customer support.



Smart Battery

Energy Capacity
7.2kWh, 9.6kWh or 14.2kWh
90% depth of discharge
97.6% maximum efficiency

Varies Per Unit - see Datasheet

Size and Weight
L x W x D
1197 mm x 518 mm x 370mm (SB7200)
1614 mm x 518 mm x 370mm (SB9600 & SB14200)
130 - 203 kg


Download Datasheet

Ground & anchored
-25°C to 60°C
Water and dust resistance to IP54

Meets local safety standards and regulations

10 years
