Q.HOME CORE H5

Integrated Solar Inverter & Storage


Algorithm maximises yields using real-time weather information

Scalable battery from 6.8 kWh, 13.7 kWh and 20.5 kWh

In case of blackout, you can set the amount of energy your Q.HOME CORE will always store

Peace of Mind

Backup Protection

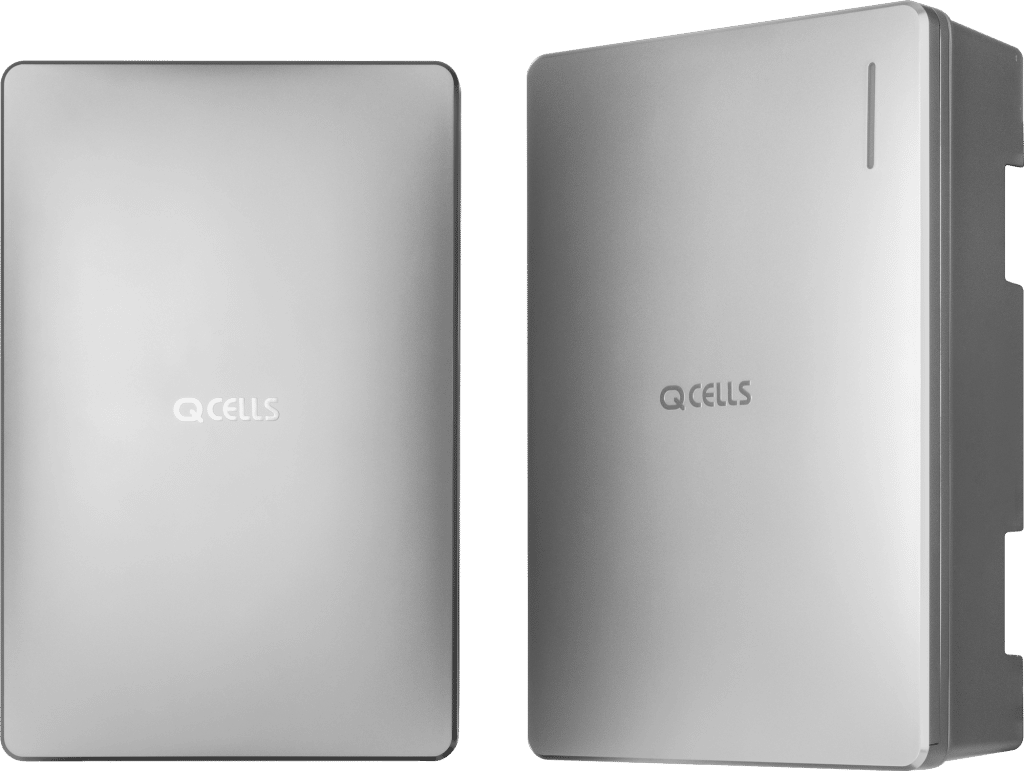

The Q.Home Core H5 is the third generation energy storage system by Q Cells. With scalability and efficiency in mind the Q.Home integrates a solar inverter with a modular battery system developed by South Korean manufacturing giant Samsung SDI.

The modular home battery design allows homeowners the flexibility of additional batteries to be added to the solar system when required. Ultimately providing the choice of occasional grid outages protection, through to extended outage peace of mind.

Enquire Now

The Core of Your Home

Power Everything


Never compromise between performance and design. Get peace of mind with integrated solar inverter and storage with 15 year product warranty, Q.HOME CORE total energy solution.

The modular battery, Q.SAVE is 6.86kWh scalable up to a maximum of 3 units/20.5kWh. Q.SAVE is integrated with a high-performance inverter, Q.VOLT, which is 5kW.


Enquire Now
Fully wrapped 15-year product and performance warranty

Seamless operation mode conversion on both grid fault and restoration

Excellent system reliability with Samsung SDI battery cells

Control

Energy Management


Q.OMMAND web monitoring provides installers and homeowners with all the important components for optimum utilisation of the solar system.

This web application provides features of full visibility on your system’s performance, flow of energy, and dynamic charts. You can view how much energy your PV array generates as a system and per-panel, and how much of that energy is being stored in the battery and consumed.


Enquire Now

No Comprimise

Performance & Design


Never compromise between performance and design.

Sleek and durable the Q.Home is finished in a Metallic Silver. Homeowners can choose between a wall mounted option or floor standing.


Enquire Now

Specifications

Q.Home Core




Energy Capacity
6.8 kWh - 20.5 kWh
95% depth of discharge
97% Max. Efficiency (PV to Grid)
97.8% Max. Efficiency (PV to Battery)
96.3% Max. Efficiency (Battery to Grid)



Power
5kW Hybrid Inverter
5kW Max. Charge @ 2 Batt Pack
5kW Max. Discharge @ 2 Batt Pack
<0.1 sec backup transition



Size and Weight
L x W x D
460 mm x 700 mm x 221 mm
238mm (from wall)
37.5 kg Inverter
61.1 kg Battery

Enquire Now

Download Datasheet



Installation
Wall-Mounted or Floor-Mounted
-20°C to 60°C Inverter Operating Temp
-10°C to 45°C Battery Operating Temp
Water and dust resistance to IP65



Certifications
Meets local safety standards and regulations



Warranty
Fully wrapped 15-year product and performance warranty
