RedBack Smart Hybrid

Tomorrow's Power. Today.


Backup Supply during a
Power Outage

4.8kWh - 28.4kWh
Battery Storage Capacity

Australian Designed for Australian Conidtions

The Complete Solution

Smart Hybrid System


The Redback Smart Hybrid System is designed for those looking to get the maximum benefit from self-generated solar. As an all-in-one modular unit, the Smart Hybrid System eliminates the need for a separate inverter and battery compartment, reducing the number of external cables needed on the side of your home.

A hybrid system is also the most cost-effective solution for installing rooftop solar power and battery storage at the same time.

Enquire Now

Tomorrow's Power. Today.

Smart Cycle


We consume most of our power in the morning and in the evening, yet solar panels generate most of their energy in the middle of the day when the sun is shining. Adding a battery to compliment your rooftop solar will allow you to store your excess energy generated during the day, to power your home when the sun goes down. This in turn reduces the need to buy electricity in peak periods, saving you even more on your power bills.

A home battery system can also provide you and your family protection in a power outage by enabling you to power essential appliances in your home with your stored battery power in the case of a blackout.

Enquire Now

Determine your level
of Self-Sufficiency

Monitor your Home
in Real-Time

Discover how much energy you're Buying or Selling

Monitoring

MyRedBack App

The MyRedback app puts the control in your hands. You can monitor the amount of electricity your solar panels are producing, the amount being exported back to the grid, and your household energy consumption.

Monitor your energy use with ease with the Redback Portal web application. The Redback Portal provides an intuitive dashboard that incorporates analytical solar and storage data dating back two years.*

*For data to be collected, the system must be online.


Enquire Now

Australian Designed

For Australians Everywhere


RedBack's solar and battery solutions are designed in Australia and tested to endure the harshest Australian weather conditions, so you can feel confident installing your system in an outdoor location or garage.

With options to suit every home, you can feel secure knowing that Redback’s products are built to last, with a 10-year warranty and local Brisbane-based customer support.

Enquire Now

Specifications

Smart Hybrid

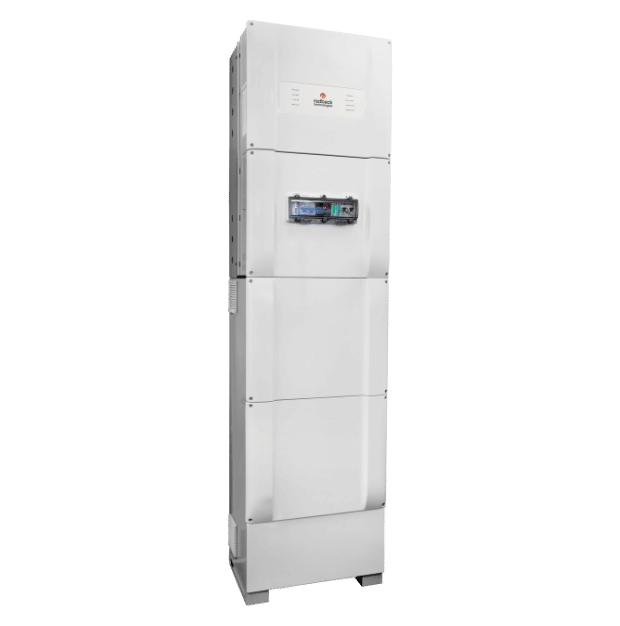

SH5000 - Single Phase




Energy Capacity
4.8kWh - 28.4kWh
90% depth of discharge
97.6% maximum efficiency



Power
5kW Inverter
4.6kW Backup Continuous
6.9kW Peak (10 sec max)
Quick backup transition



Size and Weight
L x W x D
518 mm x 352 mm x 1960 mm
132 - 203 kg

Enquire Now

Download Datasheet



Installation
Ground & anchored
Expansion cabinet - left or right
-25°C to 60°C
Water and dust resistance to IP65



Certifications
Meets local safety standards and regulations



Warranty
10 years


Specifications

Smart Hybrid

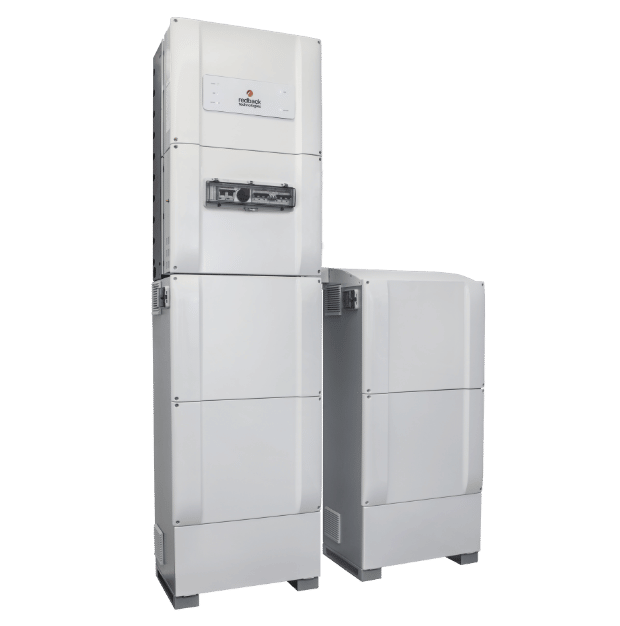

ST10000 - Three Phase
(expansion cabinet pictured)




Energy Capacity
4.8kWh - 28.4kWh
90% depth of discharge
97.6% maximum efficiency



Power
10kW Inverter
10kW Backup Continuous
16.5kW Peak (60 sec max)
Quick backup transition



Size and Weight
L x W x D
518 mm x 352 mm x 1960 mm
127 - 210 kg

Enquire Now

Download Datasheet



Installation
Ground & anchored
Expansion cabinet - left or right
-35°C to 60°C
Water and dust resistance to IP66



Certifications
Meets local safety standards and regulations



Warranty
10 years
